Genesis Equilibrium

$3,499.95
Shimano spare parts finder

This model is unavailable in your country.

We're sorry but this bike model is not yet available to buy in your country. Sign up to be the first to hear when it becomes available.

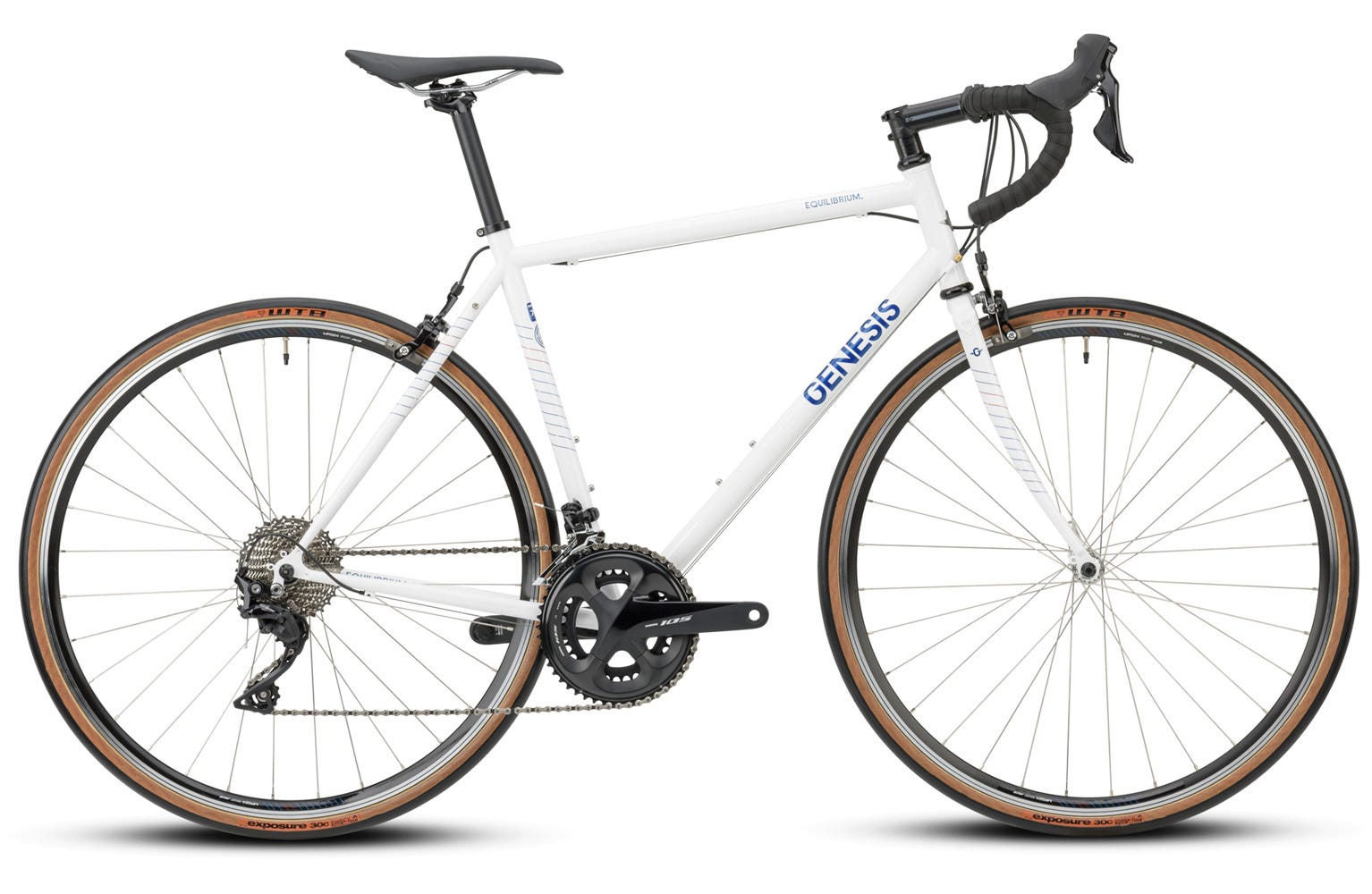

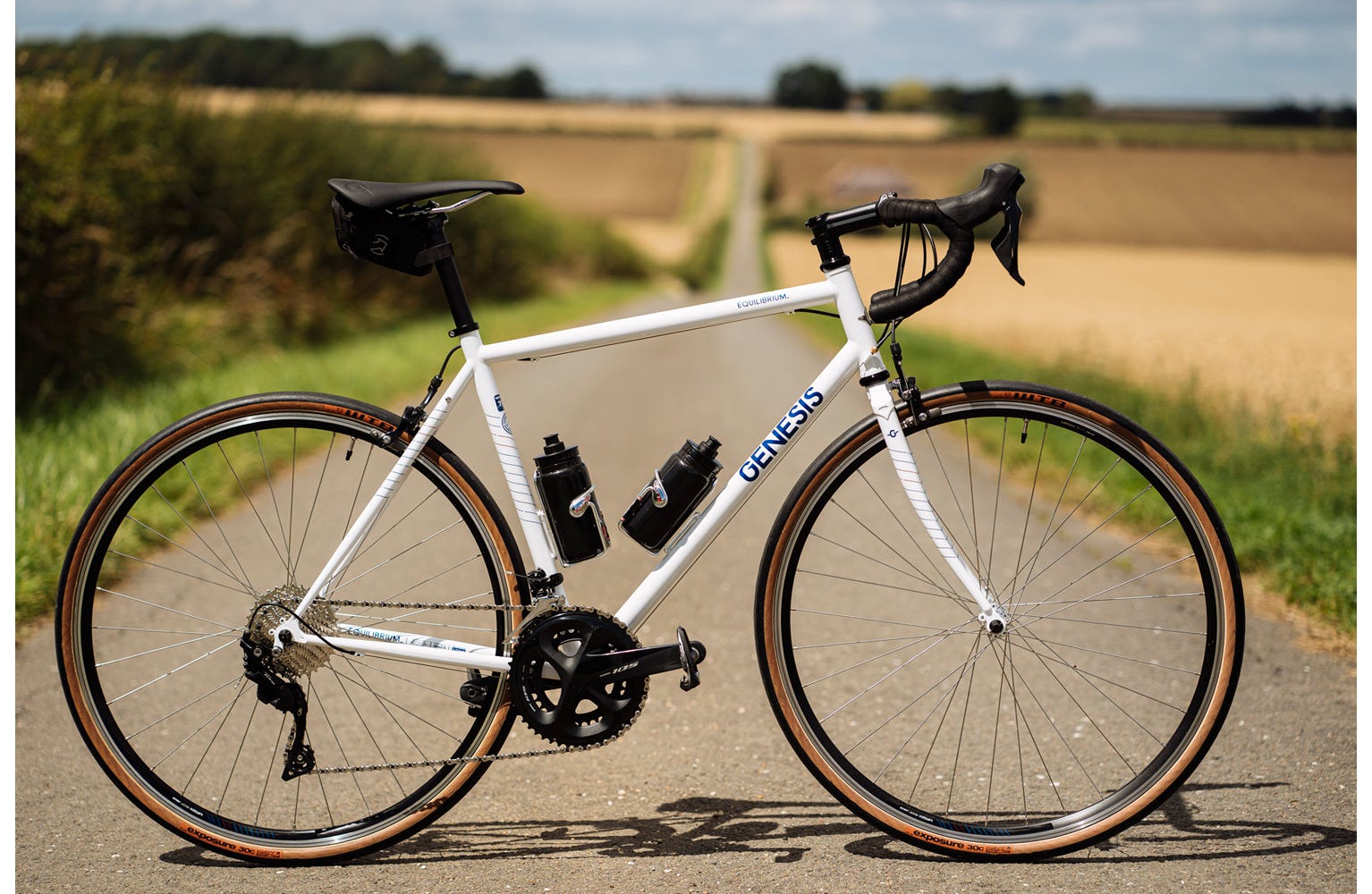

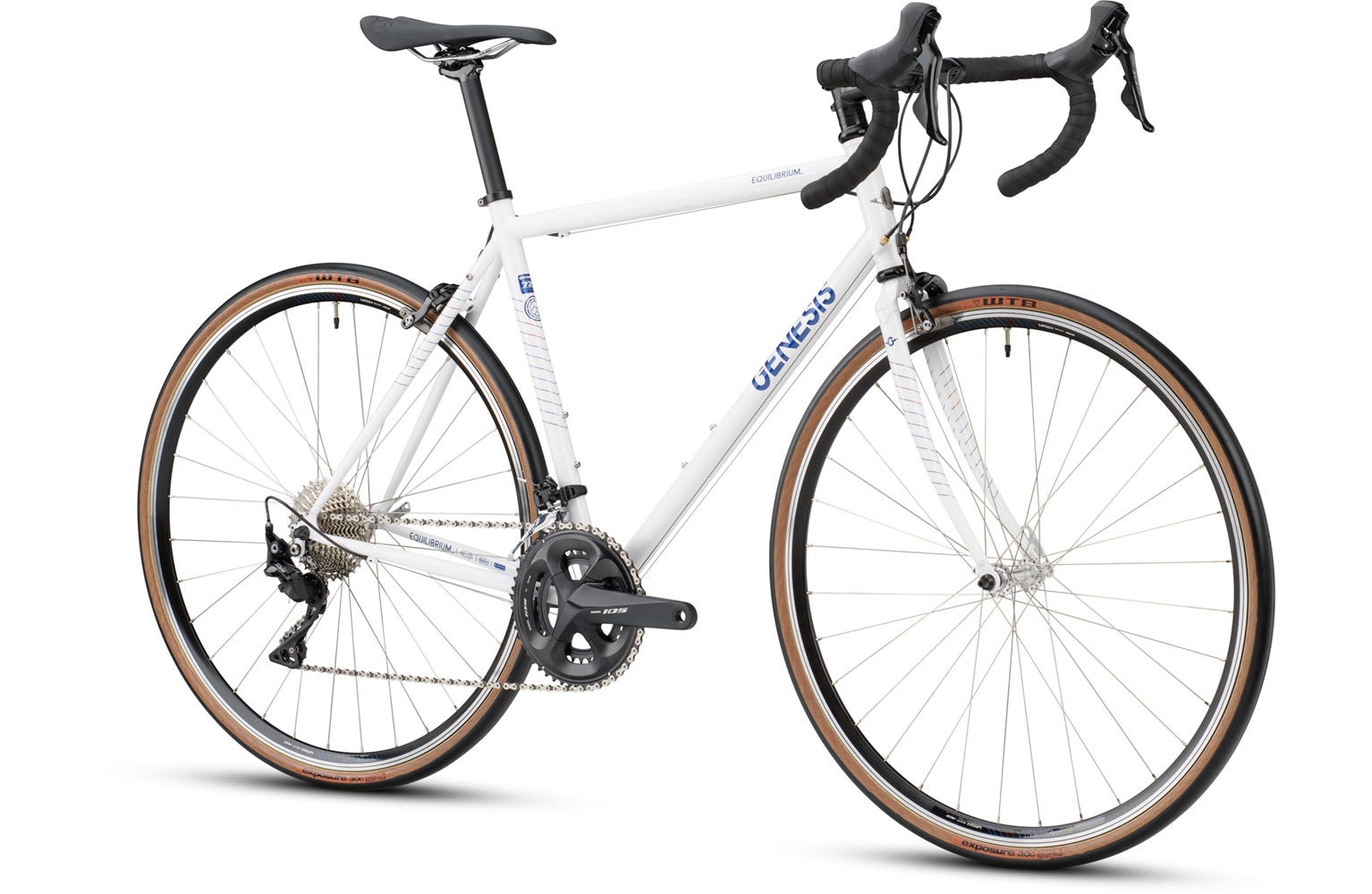

Genesis Equilibrium

Product Gallery

Product Details

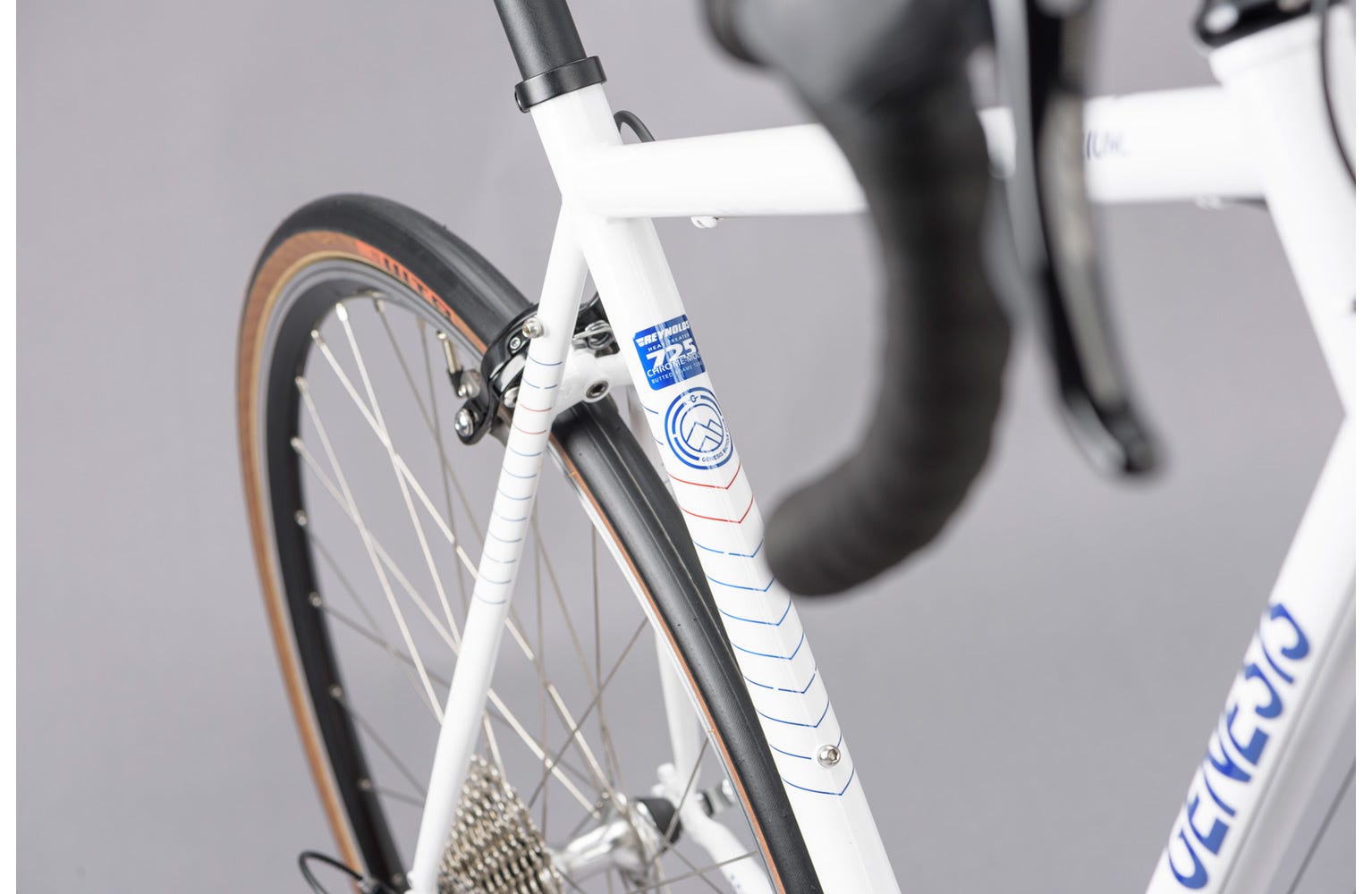

    There is good reason why the equilibrium has been a staple in our range for many a year now - the combination of a lightweight, durable Reynolds 725 frame, classic looks, full-length mudguard capabilities, sublime ride and handling qualities has made it a true riders' favourite; to many the quintessential four-season UK road bike.

    With a little more relaxed geometry versus a conventional road race frame (longer wheelbase, slacker headtube angle & more fork offset), the Equilibrium is our lightweight steel all-rounder, ideally suited to big mile rides where comfort, stability and efficiency come before KOM leaderboards.

    That said, it's no slouch, the surefooted geometry, spritely steel frame and fork work wonders to smooth out and tame the worst of the UK broken roads and will have you descending and cornering like you're on rails!
Genesis Equilibrium
SKU
VARGN21800
Specification
Shimano SM-BBR60

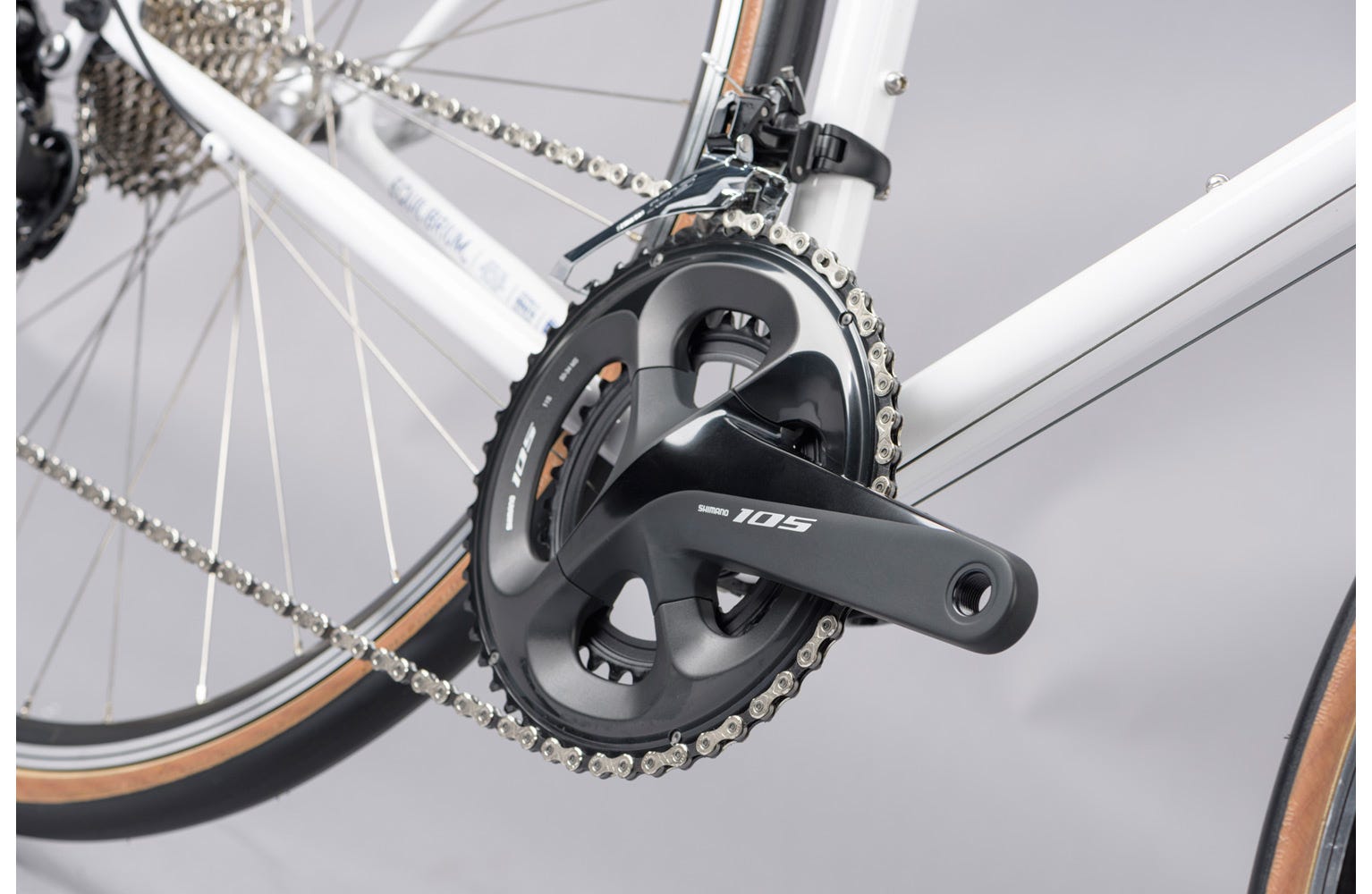

Shimano 105 ST-R7000 11 Speed

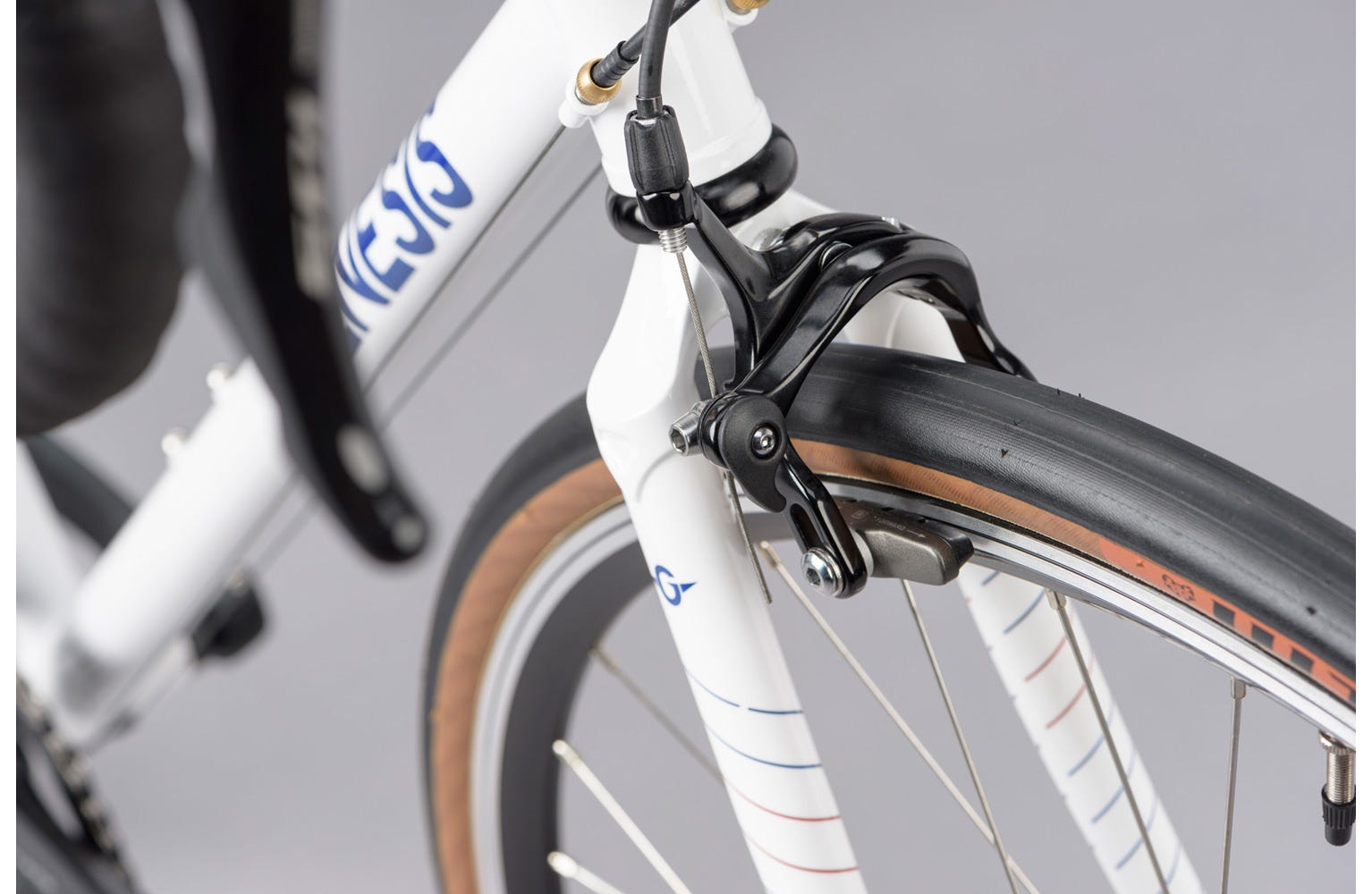

Promax RC-477

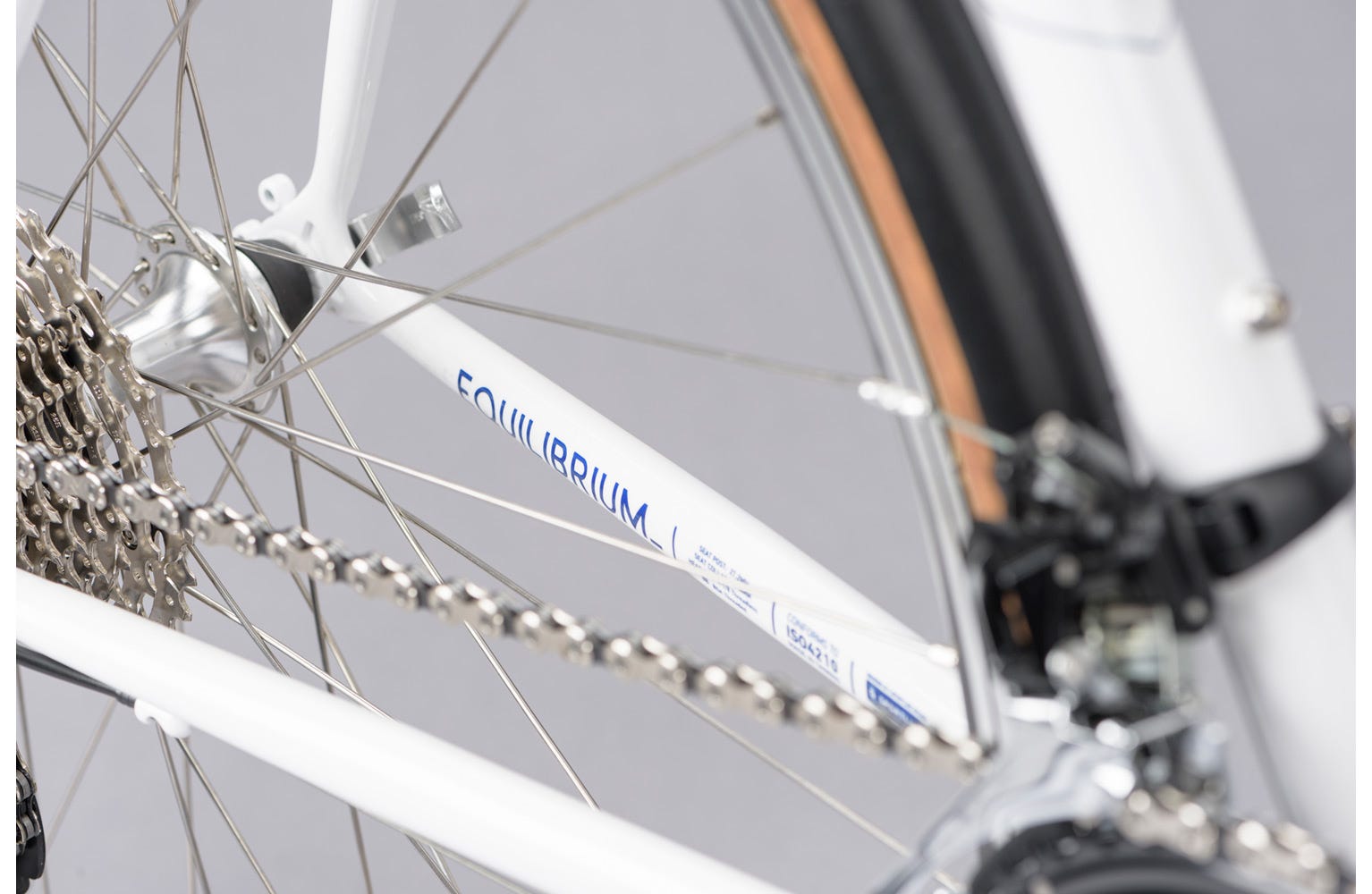

Shimano CS-HG700-11 11-34T
KMC X11

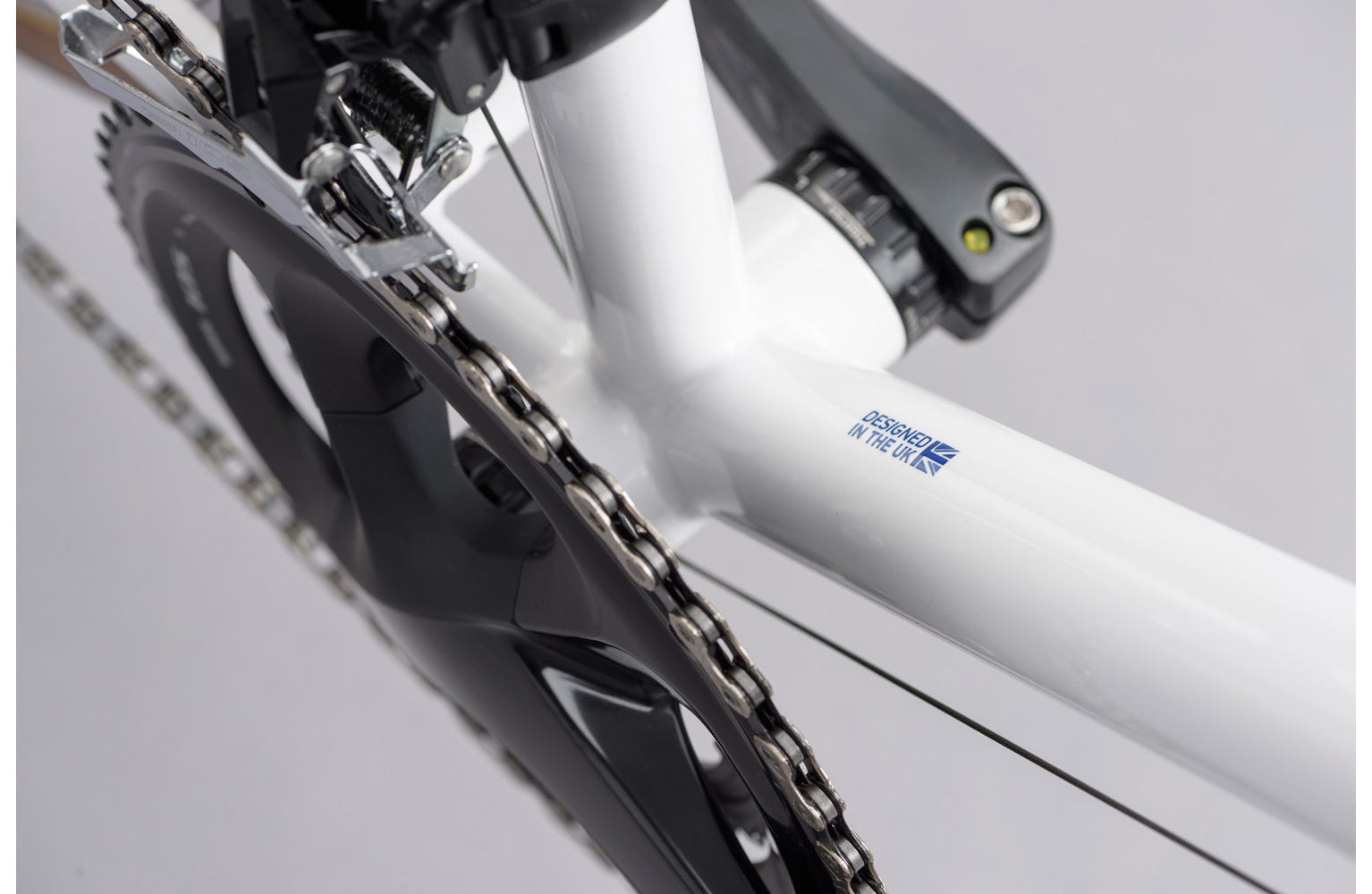

Shimano 105 FD-R7000 L
Genesis
PT-1767D EC34 Upper / EC34 Lower
KT Front - KT-G15F / Rear - KT-GTER
Shimano 105 RD-R7000-GS
Jalco MRS24
Genesis
Genesis Alloy 27.2 x 350 mm
Shimano 105 ST-R7000 11 Speed
Steel 14 g
WTB Exposure 700 x 30c
700c
Genesis Steel
Steel
Steel
Rim
Sizing & Geometry
156
158
160
162
164
166
168
170
172
174
176
178
180
182
184
186
188
190
192
194
X-SMALL - 156 to 164
SMALL - 164 to 172
MEDIUM - 171 to 179
LARGE - 178 to 186
X-LARGE - 185 to 193
Frame Size X-SMALL SMALL MEDIUM LARGE X-LARGE
Stem Length plus Reach 464 475 485 505 515
Frame Seat Tube 460 490 520 540 570
Frame Top Tube 526 542 561 579 595
Frame Reach 374 375 385 395 405
Frame Stack 533 556 579 598 618
Frame Head Tube 120 140 160 180 200
Frame Head Angle 72° 72° 72° 72° 72°
Frame Seat Angle 73.5° 73.5° 73.5° 73° 73°
Frame Chainstay 420 420 420 420 420
Frame BB Drop 72 72 72 72 72
Frame Wheel Base 1009 1009 1016 1032 1048
Fork Offset 50 50 50 50 50
Fork Travel
Standover 759 780 797 823 846
Stem Length 90 100 100 110 110
Handle Bar Width 400 420 420 440 440
Frame Size X-SMALL SMALL MEDIUM LARGE X-LARGE
Stem Length plus Reach 464 475 485 505 515
Frame Seat Tube 460 490 520 540 570
Frame Top Tube 526 542 561 579 595
Frame Reach 374 375 385 395 405
Frame Stack 533 556 579 598 618
Frame Head Tube 120 140 160 180 200
Frame Head Angle 72° 72° 72° 72° 72°
Frame Seat Angle 73.5° 73.5° 73.5° 73° 73°
Frame Chainstay 420 420 420 420 420
Frame BB Drop 72 72 72 72 72
Frame Wheel Base 1009 1009 1016 1032 1048
Fork Offset 50 50 50 50 50
Fork Travel
Standover 759 780 797 823 846
Stem Length 90 100 100 110 110
Handle Bar Width 400 420 420 440 440
